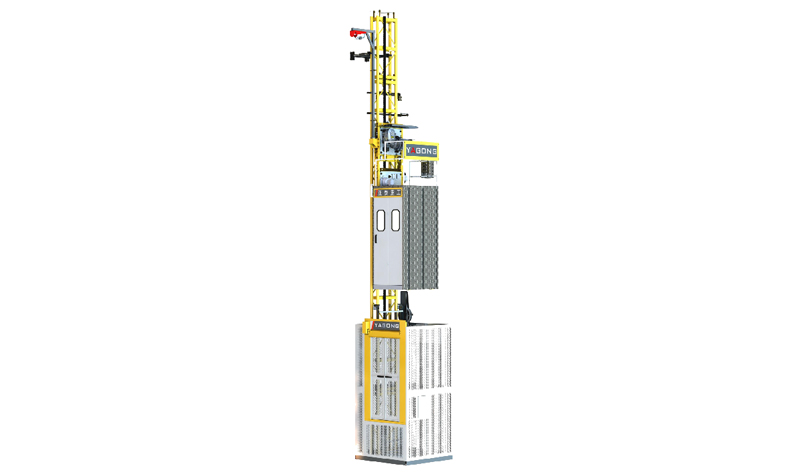

Load Capacity
Performance Parameters
| TYPE | Rated load | Rated speed | Motor power | Control | Max.Lift height |
| SC40-36V | 400Kg | 0~36m/min | 1 x 9.3 kw | Inverter | 150 m |
| SC40-60V | 400Kg | 0~60 m/min | 2 x 7.5(13) kw | Inverter | 260 m |
Tower

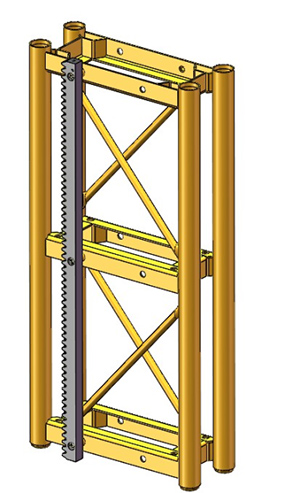

Mast Section
| Type | Dimensions | Main chord specifications |
| ST65A.1 | 650x200x1508 mm | Φ76x4.5 mm |
| ST65A.2 | 650x200x1508 mm | Φ76x6 mm |
Climbing
Transmission Mechanism
| TYPE | Motor | Gears box | ||
| Type | Transmission ration | Remarks | ||
| SC40-36V | YZZ132M1-4 | SJ100-2A | i=16.32 | Helical worm gear reducer |
| SC40-60V | YZZ132M1-4 | SJ100-2A | i=16.32 | Helical worm gear reducer |
