Load Capacity
Performance Parameters
| TYPE | Rated load | Rated speed | Motor power | Control | Max.Lift height |
| SC200/200IVS-36C | 2.0 t | 36m/min | 2 x 2 x 12 kw | power frequency | 150 m |
| SC200/200IVS-50V | 2.0 t | 0~50 m/min | 2 x 2 x 13 kw | Inverter | 260 m |
| SC200/200IVS-60V | 2.0 t | 0~60 m/min | 2 x 2 x 22 kw | Inverter | 480 m |
Tower

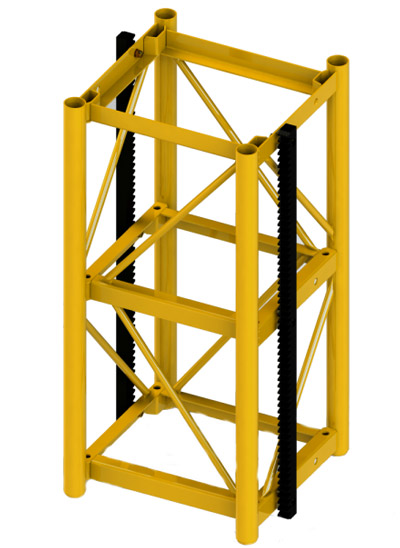

Mast section
| Type | Dimensions | Main chord specifications |
| ST65.1 | 650x650x1508 mm | Φ76x4.5 mm |
| ST65.2 | 650x650x1508 mm | Φ76x6 mm |
| ST65.3 | 650x650x1508 mm | Φ76x8 mm |
| ST65.4 | 650x650x1508 mm | Φ76x10 mm |
Climbing
Transmission mechanism
| TYPE | Motor | Gears box | ||
| Type | Transmission ration | Remarks | ||
| SC200/200IVS-36C | YZZPA132M2E-4 | SJ100-2A | i=16.32 | Helical worm gear reducer |
| SC200/200IVS-50V | YZZPA132M2D-4 | SJ135-2 | i=17.69 | Helical worm gear reducer |
| SC200/200IVS-60V | YZZP132M2F-4A | SJ135-1 | i=16 | Helical worm gear reducer |
